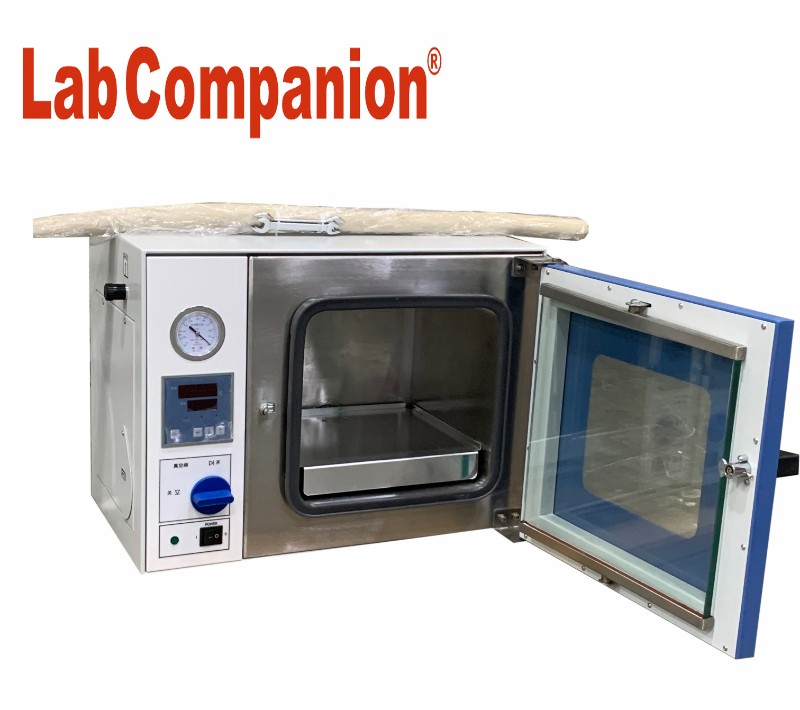

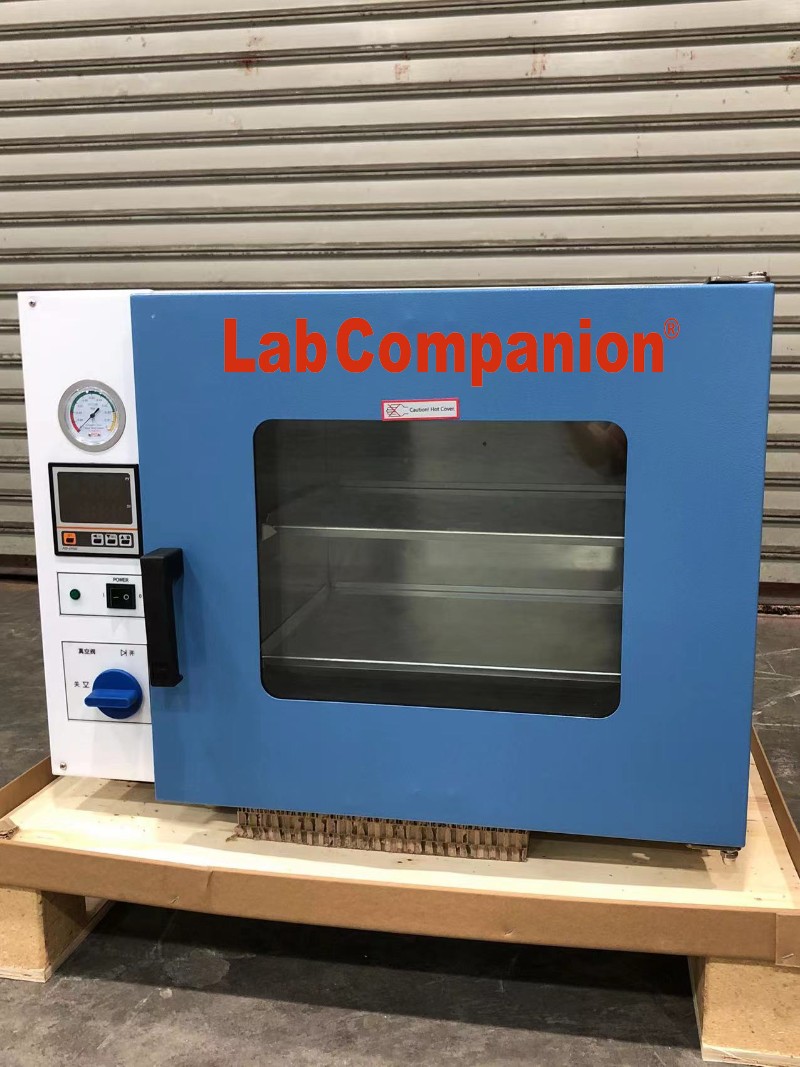

Hongzhan independent research and development of air drying oven, surface using electrostatic spray process, novel appearance, durable. The studio is made of 304 stainless steel plate or cold rolled steel plate, which has the advantages of high temperature resistance, corrosion resistance and no black smoke. Double toughened glass observation window in the middle, easy to operate, you can see the heated items in the working room. Oven is the use of electric wire layer heating to dry the object equipment. It is suitable for baking, drying and heat treatment in the range of 5~300℃ higher than room temperature, and the sensitivity is usually ±1℃. It has many models, but the basic structure is similar, generally by the box, electric heating system and automatic temperature control system of three parts.
Temperature setting method of blast drying oven
Turn on the power switch, the controller is connected to the power, there will be 2 seconds of initialization
Controller Settings with timing function: Press SET key, enter the temperature setting state, on the display window prompt SP, discharge according to the temperature SET point, through [increase], [less], [shift] key changes to the required SET of values, then press SET button to enter the time setting, display window row of ST, discharge according to the time Settings, SET the time required to by the above methods, Press SET again to end. At this time, it enters the working state. The upper row shows the actual temperature value, and the lower row shows 0. When the temperature reaches the set value, the time will be calculated.
After the preset time is up, the operation is finished, the lower row of the display window displays "End", and the buzzer beeps intermittently. If you need to return to the initial state, press the "Reduce" key for 3 seconds. The above setting can reach 9999min.
